Liebherr PR 754/764

Hi friends,

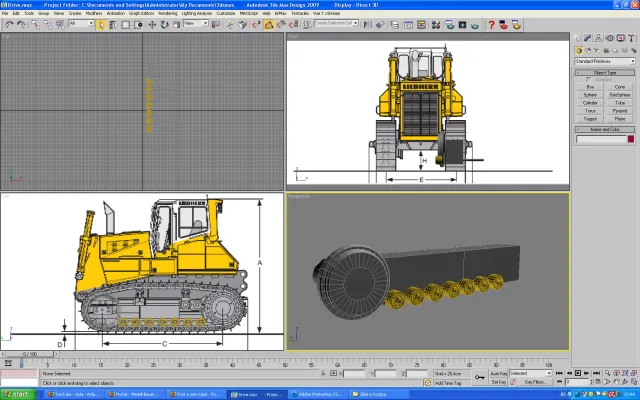

here i started to build my own Caterpillar D9(i planed it that way)in 3ds max 2009.

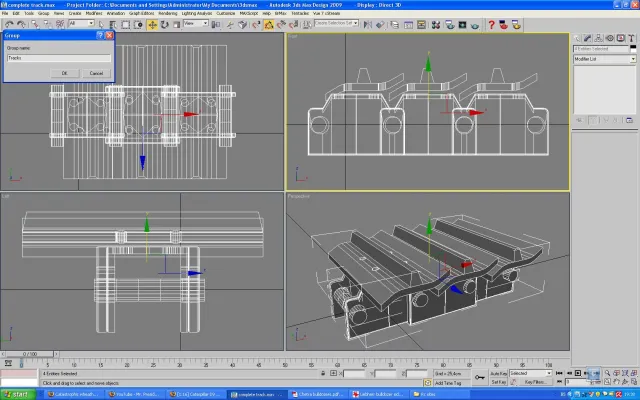

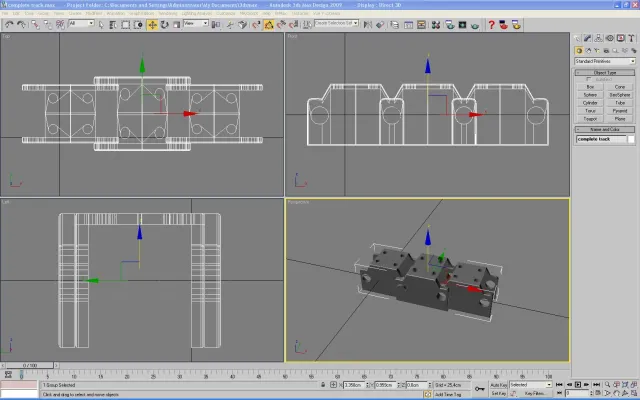

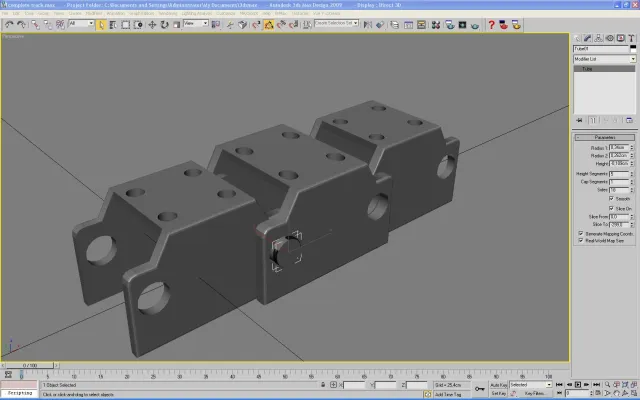

There is only a chains that will bear separate single-tracks(or double tracks like Liebher´s front loader) with three screw holes.
On the side there are bolts that will act as drive-gear and that they will hold chain-links together.

I´d like to hear your opinion, critics/comments,

Best regards,
Edo

It is my first model and it could look a bit "weird" because of that.
I wasnt quite sure which one to start to build whether Caterpillar, Chetra or Liebherr.
Well, i think that im gonna do Liebherr´s one.

Thatnks for your post, so here is some progress:

Bets,
Edo

Hello leute,
Here´s small progress of that bulldozer, so, eventually i choose Liebherr´s one.

If any of you guys think that something is wrong with this project, please let me know,
bets regards,
Edo

Zitat von Iguana

ähhmmmm.......
I don´t know, if you know.... but the title of this thread is CAT D9
But in your CAD programm is an Liebherr dozer....

Please Check it???

Yes i know. Perhaps you didn´t read full post before, where i said that im in doubt to start with Liebherr´s, Chtz Bulldozer, or with Caterpillar.
As far as Cat has that high-drive, it was a bit (i was thinking) too complicated to recreate those tracks.
Thats why i choose Liebherrs one.
Also, i should rename thread.

Thanks Alex,
Edo

Zitat von Liebherr LR 632

Hy Edo,

I´ll rename your Thread,when you say me what type of Dozer you want to build.

Best regards

Hi Daniel,
you can rename this tread to "Liebherr 754/764".
Here is the documentation as well in pdf:
http://www.liebherr.com/catXmedia/em/D…bd9b10be231.pdf

Thanks,
Edo

Alles anzeigen

Small update from last night:
Any comments?

Edo

Here we have some updates, that i´ve just finished.
If anyone have any ideas how something can be improved, please let me know, because there is a lots of guessing in here.

Edo

Hi boys,
here I am having some progress.
Hers the result.

Please coment it, because im feeling kind on my own in this project.

Bitte schon, comment mein arbeit,

Edo

Hallo leute,

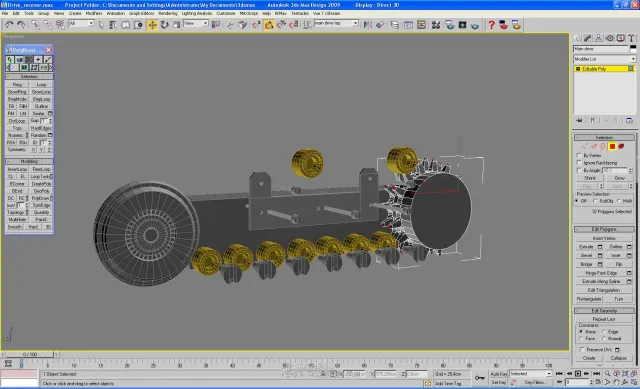

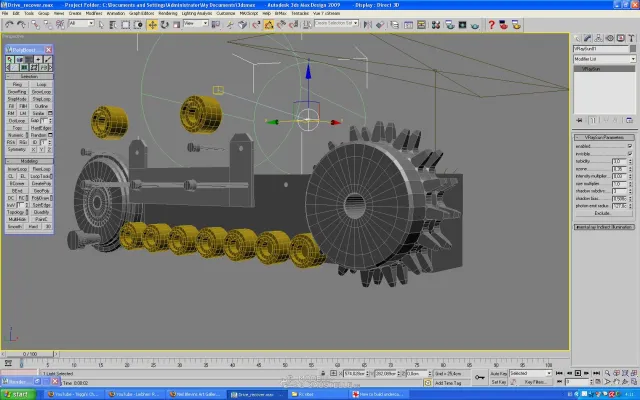

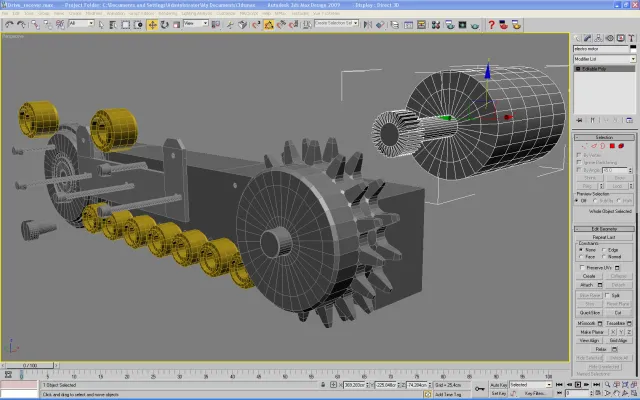

I have small progress on main drive gear.
See for your self, and tell me what do you think about this.

Please comment it.

Your friend Edo

Hey people why noone is answering me at all???
Is that because im silly with my project?
Or is it because im not german speaker?

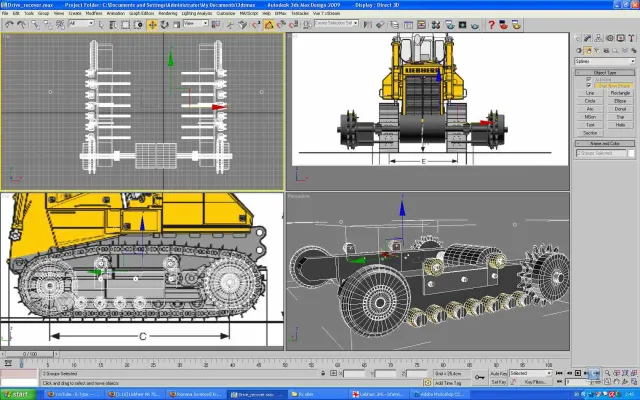

Anyways hers some small update with chain-holder and electro-motor.

Best for you,
your
Edo

Oh no, i will write in here a lots more, but shame on me, considering to German language, because i should learn it a bit more(a lots actually):)

Thank you Daniel i was in doubts to continue or to dismiss.
As you can see i have major problem here-thats those two electro motors that makes bulldozer a lots wider then it should be.
So, i have got to find another soultion(which will be, perhaps, smaller motors in size).

Also i need advices how to position those motors, how to conect them, and how to make them responive to radio-controle unite.

Zitat von Liebherr LR 632

Hello Edo,

It is no one answering, because you don´t write in german, sorry.

Not all users here can speak english or understand at all.

But what you build looks great 03-Sterne.gif" wcf_src=https://www.modell-baustelle.de/wcf/images/smilies/03-Sterne.gif alt="03-Sterne"> !!!!

It would be stupid if you here would write nothing more.

Annoyance you not if nobody writes what,the rest of us is very interessted in your Project. You´ve got nearly 800 klicks on your project.

So, keep going

Für alle anderen, die hier gern was schreiben möchten, hier gibts einen guten Online Übersetzer:

http://www.online-translator.com/?prmtlang=de

Greetings from Germany

Daniel

Alles anzeigen

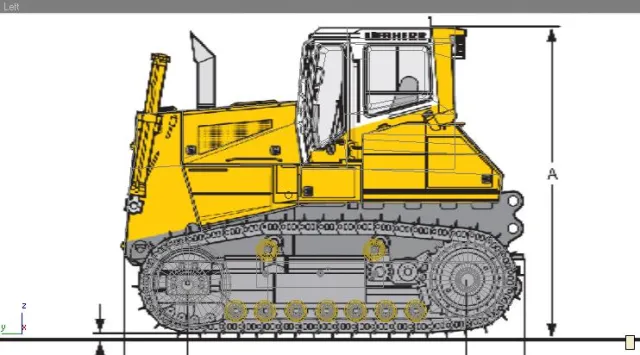

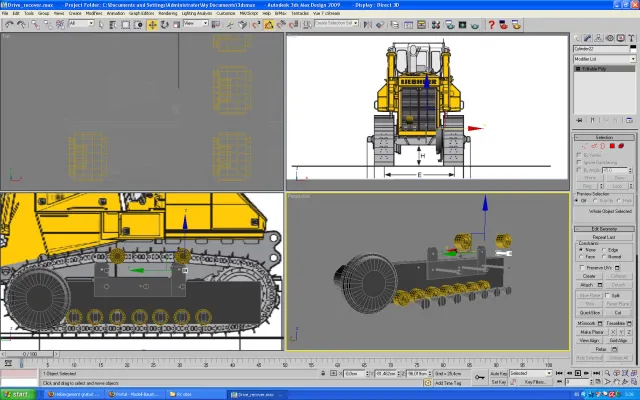

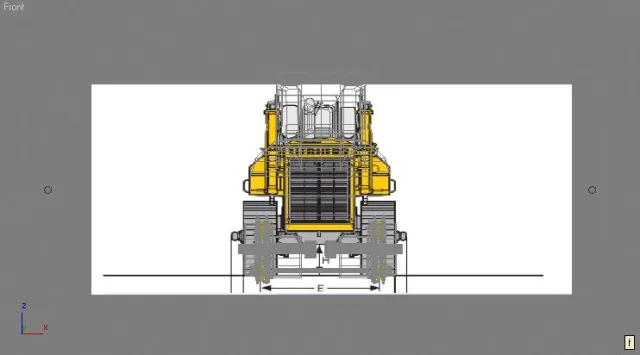

Heres update there you can see on upper right view that considering to blue-prints that drive is oversized.
So, i need to find another solution.

Zitat von andreas k.

Your looks very good so far.
I'm a bit curious about your use of 3DS-Max.
Is it possible to extract drawings for manufacturing-purposes?
Untill now, i've thought it was intended for 3D-modelling only.

Keep on your work
best regards
Andreas

p.s.: You don't need to worry about nobody being interested in your project.
As Daniel said, many Users don't speak/read/write english so well.

Alles anzeigen

Thanks Andreas, but as you can see i have certain problems in there.
It is possible to extract drawings from 3ds max, thats no problem.
Yes it is modeling package, but you can do rendering also, animation etc.
If you are curious, just let me know what you need to know, and ill help you to get started in 3ds max.
Many civil, machine engineers, architects use it for many purposes-you should also.

Anything that you need on 3ds max, just go ahead and ask me.

Best regards,
Edo

Hey people,

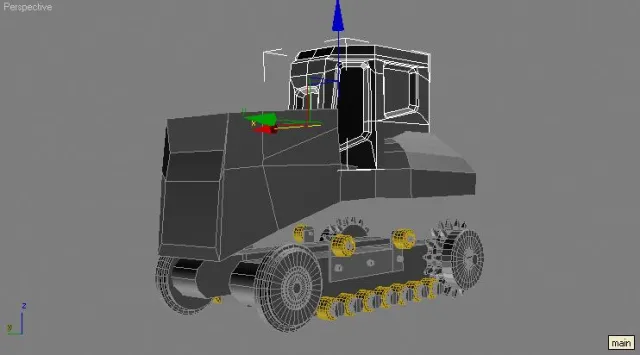

heres small update on cabin, body and tank.

Please if anybody can help me, i dont know where to put electro-motors?

Cheers,
Edo
